Product Details:
|
Usage: | Gold Mining | Color: | Clients' Request |
---|---|---|---|
Keyword: | Gold Trommel | Keyword1: | Gold Trommel Screen |

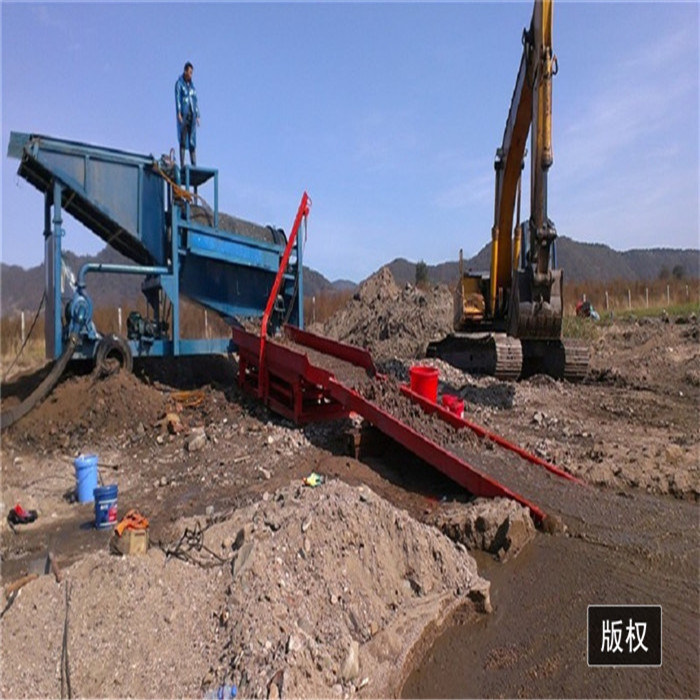

1. Features of Gold Mining Trommel Machine from KEDA
1) The KD-TJ series gold washing plants are designed according to your specific mining conditions and requirements.
2) Feeding system with hopper feeder(Surface Color is customized), water spray pipes inside the hopper for spray waters to the soils.
3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required)
4) At least Double sieve trommel screen with NSK bearings(Or any other famous and qualified bearing as our clients wanted) and high pressure water spray pipes on both sides for washing, screening and separating.
5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator(Or any other brand according to our clients' need) with all batteries, cables and wires.
9) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability.
10) Gold refinery plant to make final product of gold bars.
11) Easy for installation, operation and maintaining.
12) One-Sop gold mining solutions from Sand to Gold.
Basic parameters
Model | KDTJ-50 | KDTJ-100 | KDTJ150 |
SIZE/mm | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
Capacity | 80-100 tph | 200-300 tph | 300-400 tph |
Power | 50 kw | 100 kw | 150 kw |
Feeder Hopper/mm | 2000*2200 | 3000*2200 | 800*3000 |
Sluice Box | 1set | 2set | 3set |
Recovery Rate | 98% | 98% | 98% |
KDTJ-50 |
KDTJ-100 |
KDTJ-200 |
|
Performance |
|
|
|
Dimension(L*W*H)(mm) |
7000*2000*3000 |
8300*2400*4700 |
9800*3000*5175 |
Processing capacity (t/h) |
30-50 |
100-150 |
200-300 |
Main Power |
|
|
|
Power(kw) |
75 |
100 |
150 |
Feeder hopper Gold screen machine |
|
|
|
Size (L*W*H) |
2000*2200mm |
3000*2200mm |
3800*3000mm |
Gold chutes with carpet |
|
|
|
Size (W*L) |
1000*2000mm |
1000*6000mm |
1000*6000mm |
Quantity |
2 |
2 |
3 |
Water system |
|
|
|
Pump power(kw) |
7.5 |
22 |
30 |
Optional equipment |
|||
Wheel, Grizzly, conveyor, shaking chute , centrifugal machine etc. |
Our service
1.-- will provide 12-months for the quality of the diesel engines, generators, gear boxes, hydraulic system, control system for free.
-- Longlife warranty with charging.
--Wearing parts are not included.
2.---24hours after sales service.
3.---Engineer is available to go aboard to conduct the installation and train operators
4.---We have experienced and qualified technicists and engineers who can design rational and feasible solutions according to clients’ requirements and the working condition.
Company Certificate
1.--ISO9001:2008 International Quality Certificate
2.--National design patent and utility Patent
3.--Authority supply
3.--Credit authorization
Our Product Video WEBSITE
Company Introduction Video | https://youtu.be/uIuRcg6Syxs |
Gold /diamomd wash plant working video | https://www.youtube.com/watch?v=JRSRUSVyCbY |
Movable Gold /diamond Mining Equipment | https://www.youtube.com/watch?v=m4kFpJ8UQqA |
Keda 100-150t/h gold /diamond mining trommel | https://www.youtube.com/watch?v=AeG0tR6xxVs |
Keda 50-80t/h gold/diamond mining trommel | https://www.youtube.com/watch?v=Prya0GmGPHY |
Vibration Screen for Gold Mining | https://www.youtube.com/watch?v=yoluqw36pZQ |
Mini Gold Trommel Being tested in factory | https://www.youtube.com/watch?v=p_1nuQAl08c |
Keda Mini Gold Trommel with ISO 9001 | https://www.youtube.com/watch?v=qrGWRmdxxFEQingzhou |
Mini Dry Air Extraction Machine | https://www.youtube.com/watch?v=ZhOchMKtlF8 |
