Product Details:
|
| Meterial: | Iron/stainless Steel | Tool: | Hydraulic Scissor/wheel Cutter/collection Boom |
|---|---|---|---|
| Working Capacity: | 1000m3-5000m3 | Mowing Width: | 0.5-2m |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service |
| Condition: | New | Dimension(l*w*h): | 1400*1400*800mm,14.2m*4.2m*1.5m,14.6m*5.0m*4.0m,2720*1300*1180mm,15m*5.2m*4.5 M |
| Type: | Mini Harvester,Combine Harvester,Automatic Harvester,Aquatic Harvester | Usage: | Weed Harvester,water Area Cleaning |
| Drive Type: | Gear Drive,Paddle Wheels,a Double Paddle Hydraulic Propelling,hydraulic Systerm,Hydraulic Drive | Application: | Water Cleaning |
| Weight: | According To Product | Color: | Customerized,Blue,Customer's Request,As Demand,As You Required |
| Power: | 58kw-83kw,85kw,170F Air Cooling Diesel Engine,5.15KW,diesel | Function: | Multifunction,Aquatic Weed Harvester,River GARBAGE Cleaning |
| Name: | Aquatic Weed Harvester/Garbage Salvage Ship/ Water Hyacinth Harvest,Hydraulic Full Automatic Aquatic Weed Harvester,water Hyacinth Harvester | Product Name: | Seaweed Harvesting Boats Aquatic Weed Harvester For Sale,trash Skimmer Harvester,Trash Skimmer/Garbage Collection Boat/aquatic Weed Harvester,Aquatic Plant Harvester |
| Applicable Industries: | Construction Works,Home Use,Energy & Mining,Manufacturing Plant | Engine: | 4-stroke,Wechai Deutz,Diessel Engine,Cummins |
| Cutting Width (mm): | 2200mm,2500,800mm,2250 | Harvesting Width: | 2m,2.9m,3.2m |
| Item: | Hyacinth Harvester |

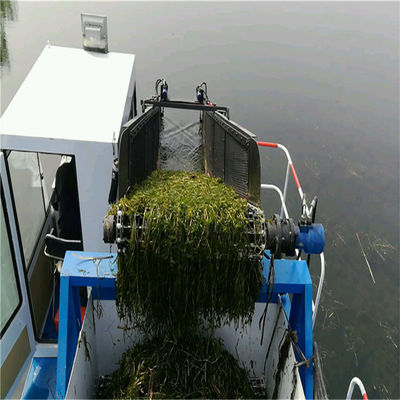

Head Dredging aquatic weed harvesters are usually used in river, lake, reservoir and coasts for cutting, collecting, storing and transporting water weeds and floating garbage. The equipment can work automatically and can save much labor force for its high efficiency. The products have many advantages, such as: automatic, easy to operate and maintain, abrasive stainless chain, integrated with cut, collection, salvage and discharge, etc. Its characteristics of simple structure, flexible movement and easy operation make it an important environment friendly machine in water cleaning.
| Model | HD-WH40 | HD-WH60 | HD-WH100 | HD-WH150 |
| Loa(L*w*h) | 8*3.7*1.7m | 10.5*4.4*1.7m | 13*4.4*2.6m | 15*4.6*3.7m |
| Working Capacity | 1000m2/h | 2000m2/h | 3000m2/h | 4000m2/h |
| Mowing Depth | 0.6m | 0.6m | 0.8m | 0.8m |
| Mowing Width | 1m | 1m | 1-1.2m | 1-2m |
| Unloading Height | 1.5m | 2m | 2.5m | 2.5m |
| Loading Capacity | 3m3 | 4m3 | 7-11m3 | 10-20m3 |
| Fuel Consumption | 3L/H | 6L/H | 6L/H | 8L/H |
| Speed | 0-5km/h | 0-7km/h | 0-8km/h | 0-8km/h |
| Item | HD-WH100 | Item | HD-WH100 |
| Loa(L*w*h) | 13*4.4*2.6m | Engine Power | 45kw |
| Hull(L*w*h) | 7*3*1m | Fuel Consumption | 6L/H |
| Working Capacity | 3000m2/h | Fuel Tank | 200L |
| Draught | 0.5m | Speed | 0-8km/h |
| Mowing Depth | 0.8m | Propulsion | Paddle Wheel |
| Mowing Width | 1-1.2m | Hydraulic tank | 360L |
| Unloading Height | 2.5m | Electric Installation | 24V |
| Loading Capacity | 7-11m3 | Crew | 1 Operator and 1 Assistant |
| Engine Brand | Weichai | Weight | 8mt |
3) Main Features
1. The two gears of Minglun (the sailing speed is second gear and the working speed is first gear) can adjust the traveling speed to greatly improve the cleaning efficiency (it can be used as two hulls). There is a hatch in the discharge tank at the stern to increase the storage capacity
2. The full-automatic mower can be operated by one worker (collecting and conveying as a whole), and the semi-automatic mower needs 2-3 workers to operate (only collecting but not conveying). The collection chain of the semi-automatic mower can be reversed, and it only needs to reverse the collection chain when discharging.
4) Spare Parts
1. vertical knives
2. horizontal knives
3. wheel knives
4. side collector
5) Packing & Delivery
Packaging Details: standard package for export
Port: Qingdao
Delivery Time: within 5 days after receiving all the money
6)Company Introduction
is a company specialized in producing dredgers, aquatic weed harvesters, gold mining machines and greenhouses. Head Dredging aims to meet the needs of our customers by providing competitive and high-quality services , such as dredging technology, water cleaning, mineral separation, etc.
This product have many series, such as aquatic weed harvester, trash skimmer/hunter, transportation boat and other water surface products.
Our company take integrity as the foundation of the development and stand firmly in the market by accurate market positioning as well as excellent after-sales service. Our products are successfully exported to Indonesia, Malaysia, India, South Africa, Ethiopia, Vietnam, Mongolia, etc.
7) Work Shop
8) Production Line
9) Case
| Case | India | Ethiopia | Cameroon | Singapore | India | South Africa |
| Model | HD-WH150 | HD-WH150 | HD-WH100 | HD-WH100 | HD-WH 150 | HD-WH150 |
| Quantity | 2 Sets | 1 Set | 1 Set | 1 Set | 2 Sets | 2 Sets |
| Application | Cleaning the Rubbish and Weed | Cleaning Aquatic Weed | Cleaning Water Hyacinth | Cleaning Aquatic Weed | Cleaning Aquatic Weed | Cleaning Aquatic Weed |
10) Certificates
11) Other Products
12) FAQ
How to assemble the machine
Our technicians are responsible for installing the machine abroad. We also offer training services
After-sales service
If there are any problems during the operation of the machine in the warranty period, we will exchange parts for free. All kinds of questions are available after the purchase, please fell free to contact us.
