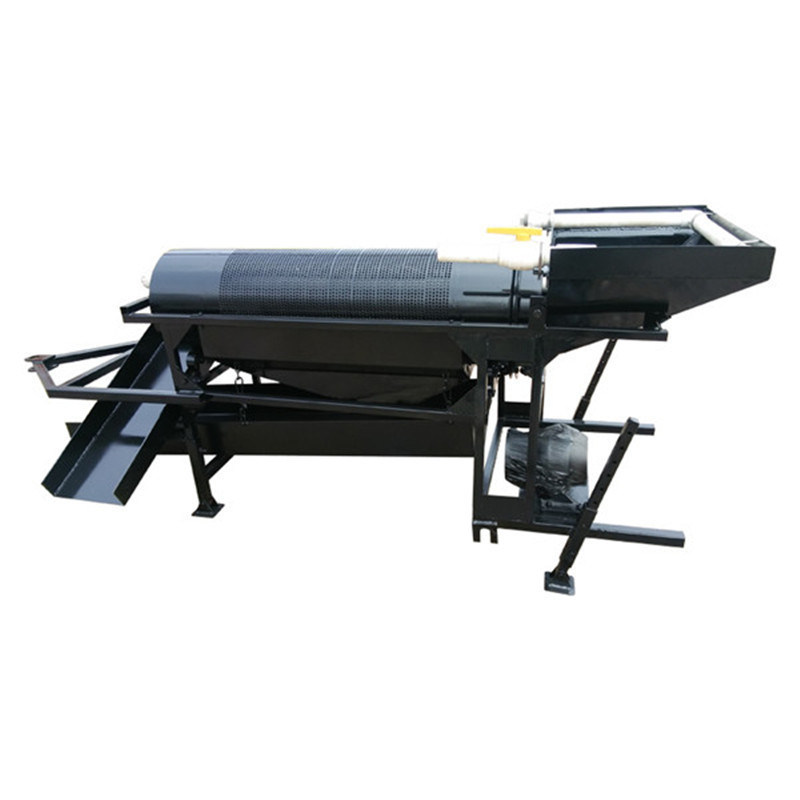

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant
Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant

Large Image :  Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant

Product Details:
Place of Origin: China
Brand Name: keda
Certification: ISO9001
Model Number: KDTJ-30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD4000-10000$
Packaging Details: Nude
Delivery Time: 30days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 2000/year

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant

Description
Material: Steel/iron Processing Capacity: 30T-200T/h
Power Type: Diesel After-sales Service Provided: Engineers Available To Service Machinery Overseas
Engine Model: 4BTA3.9-C110,QSX15,Deutz,SC9DK220G3,SC4HC140 Travel Speed: 0-7.5km/h,0-13Km/h
Power: Electric Motor,5.5HP Honda GX160,7hp Engine: Shangchai,HONDA Gasoline,import Commins
Name: Road Milling Machine,SHANTUI SM100MT-3 Cold Milling Machine,Milling And Planing Machine Product Name: Honda GX160 Asphalt Road Cold Milling Machine(JHE-200),Cold Milling Machine XM120F,mini Asphalt Concrete Cold Milling Machine For Sale,SHANTUI SM100MT-3
Milling Width: 250mm,1200mm Color: Customized,Black,Yellow
Max. Milling Depth: 160mm,320mm Rated Power: 140kw/2200rpm,447/2100kw/rpm
Warranty: 1 Year Working Width(mm): 250
Operating Speed: 0-32m/min Application: Civil Engineering,asphalt Or Concrete Surface,asphalt Planer
Gradeability: >80%(11.3°) Blade Number: 84 Piece
High Light:

50T/Hour Gold Mining Machine

,

50 Ton/Hour Gold Mining Machine

,

50T/Hour Trommel Wash Plant

keda 115m3/H jz gold trommel 85kw small gold 8m Length Steel,Rotary Movable,Gold Washing Trommel Screen


1) Product Description

Potable gold mining trommel wash plant are mainly used for gold dust recovery. It is composed by feeder hopper, scrubbing canister, nonaxle trommel, chute, shaking chute, centrifugal machine, etc. The mobile trommel screen is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation. The gold dust ore processing capacity is 40 to 500 tons per hour.

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 0

2)Technical Specifications


Model HD-T5 HD-T10 HD-T20 HD-T30
Processing capacity 5t/h 10t/h 20t/h 30t/h
Screen size(D*L) 400*1300mm 530*1800mm 790*1900mm 1200*2000mm
Mesh size 8mm 8mm 8mm 8mm
Feeding size 15mm 15mm 15mm 15mm
Diesel engine 3kw 3kw 4kw 5.5kw
Model HD-T50 HD-T100 HD-T200 HD-T400
Processing capacity 50t/h 100t/h 200t/h 400t/h
Gold chute size(D*L) 2000*1000mm 6000*1000mm 6000*1000mm 6000*1000mm
Feeder hopper 2000*2200mm 3000*2200mm 3800*3000mm 3800*3000mm
Feeding size 15mm 15mm 15mm 15mm
Diesel engine 24kw 50kw 75kw 120kw



HD-T100
Item specification Item Specification
Processing capacity 100t/h Mesh size 8mm
Machine size (L*w*h) 8300*2400*4700mm Feeding size ≤15mm
Gold chutes size(D*L) 6000*1000mm Gold chutes quantity 2
Feeder hopper 3000*2200mm Diesel engine 50kw

*The above parameters are for reference. The product is customized according to customers' requirements.

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 1

3) Main Features

1. Easy to move, patented unique design, adapt to complex condition
2. Simple operation, low water and electricity requirements, save cost
3. Large processing capacity, high recovery rate, gold recovery rate more than 90%
4. Adopt engineering machinery loading, longer drum life and no blockage.

4) Spare Parts

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 2Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 3
Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 4



5) Packing & Delivery

Packaging Details: standard package for export
Port: Qingdao
Delivery Time: within 5 days after receiving all the money

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 5Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 6

6) About us


is a company specialized in producing dredgers, aquatic weed harvesters, gold mining machines and greenhouses.aims to meet its clients' needs by providing high-quality and competitive dredging technology,water cleaning, mineral separation and so on.
We are committed to improve the technology of gold investigation, exploration, mining and refining process, so that our clients can catch more fine gold, and reduce the gold mining risks and difficulties.
Our products are mainly exported to Russia, Ghana, Kyrgyzstan, Sudan, Suriname, Guyana, Ecuador, Philippines, Indonesia, Myanmar, North Korea, Africa, etc. We can produce gold panning equipment of different production according to the customer's mineral materials and requirements.


7) Work Shop

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 7

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 8



8) Production Line

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 9
Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 10Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 11


Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 12
9) Our Certificates
Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 13Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 14
10) Other Products
Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 15Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 16

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 17



Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 18

Gold Recovery 50T/Hour Gold Mining Machine Trommel Wash Plant 19



11) FAQ

How to assemble the machine
Our technicians are responsible for installing the machine in the field. We also offer training services

After-sales service
If there are any problems during the operation of the machine in the warranty period, we will exchange parts for free. All kinds of questions are available after the purchase, please fell free contact us.
