Product Details:
|
| Type: | Single Cylinder And Double Cylinder | Weight: | 3-20 Ton |
|---|---|---|---|

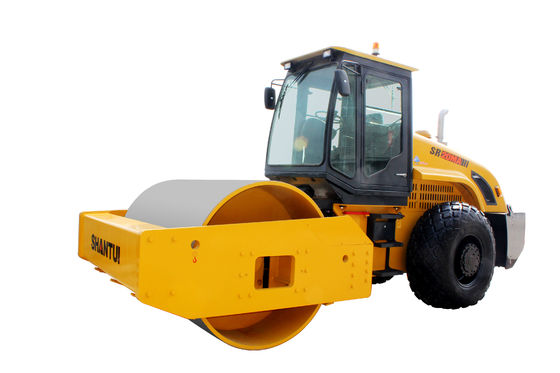

| Application: | Automatic Equipment | Product Name: | Single Drum Shantui Hydraulic Road Roller With Vibration Compactor |
| Color: | Yellow Or As Required | Size: | Customized |
| Certification: | ISO9001 | ||
| High Light: | Single Drum Shantui Hydraulic Road Roller,Vibration Compactor Hydraulic Road Roller,4 Cycle Pneumatic Road Roller |
||
| ENGINE | SR14MA SR14MPA | CAPACITIES | SR14MA | SR14MPA | ||||
| Model | Shangchai SC4H130G2 | Fuel Tank | 240L | |||||
| Number of Cylinders | 4 | Hydraulic Oil Tank | 140L | |||||
| Type | 4-cycle, Direct Injection, Water-cooled | Engine Coolant | 25L | |||||
| Aspiration | Turbocharged | Engine Crank Case | 13.5L | |||||
| Bore x Stroke | 105*124mm |
|
ELECTRICAL SYSTEM SR14MA | SR14MPA | ||||
| Displacement | 4.3L | Battery | 2x12V,105Ah | |||||
| Gross Power | 96kW @ 2000rpm | Alternator | 28V, 70A | |||||
| Max. Torque | 520N.m @ 1300~1500rpm | Starter Motor | 24V, 6kW | |||||
| Rated Fuel Consumption | 215g/kW.h | WEIGHT | SR14MA | SR14MPA | ||||
| Air Cleaner | 2-stage, Dry | Type | Operating Weight | 14000kg | 14833kg | |||
| POWER TRAIN | SR14MA | SR14MPA | Axle Load, Drum | 7000kg | 7833kg | |||
| Type | Mechanical, Rear-wheel Drive | Axle Load, Wheel | 7000kg | 7000kg | ||||
| Clutch Foot Actuated, Hydraulic Boost, Pneumatic Control, Multi-disc | Static Linear Load(at Drum) | 329N/cm 368N/cm | ||||||
The Shantui road ruller range from mini road roller to the heavy duty road roller .
Single roller vibration type road roller, double roller and pnematic rubber tyre road roller .
The Full range of road construction machinery such as bulldozer, motor grader .wheel loader and excavators.
