Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H

Certification
China Qingzhou KEDA Environment Protection Machinery Co., Ltd certification
China Qingzhou KEDA Environment Protection Machinery Co., Ltd certification
Customer Reviews
"Great job""Good service"

—— Good Suppliers

I'm Online Chat Now

Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H

Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H
Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H

Large Image :  Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H

Product Details:
Place of Origin: China
Brand Name: headdredging
Model Number: V150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD32000/SET
Delivery Time: 60work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10set/month

Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H

Description
Name: Vibrating Screen Machine/crible Vibrant Travel SpeeNamed: 120-150t/h
Power: 22kw Application: Gold Wash, Gold Screen,gold Mining
Warranty: 1 Year
High Light:

22kw Vibrating Screen Gold Mining Machine

,

Double Deck Gold Mining Machine

,

150t/H Gold Mining Processing Equipment

Double Deck Vibrating Screen Mining Equipment Gold Mining Machine Processing Capacity 150t/H Crible Vibrant

The vibrating screens are used for sizing different types of products. They are also used as safety device to prevent contamination of products.
Vibratory screeners are becoming more widely used across various industries because they allow for strict size-control and efficient separation in material sorting. Each vibration method ensures the particles passing along the screen, if small enough, will have the opportunity to fall through the screen mesh between the start and end of the deck. Each style comes in standard sizes, but can be customized with different deck systems, including wire mesh, steel, rod decks or polyurethane panels.
Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H 0

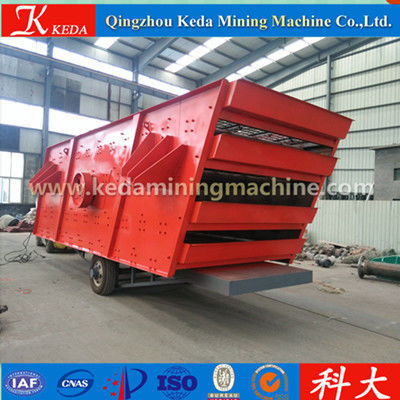

                                           Structure of Vibrating screen machine

Mainly by the screen box, shaker, the suspension (or supporting) devices and electric motors and other components. The motor drives the main shaft of the exciter to rotate through the V-belt. Due to the centrifugal inertia force of the unbalanced weight on the exciter, the screen box is vibrated. By changing the eccentric weight of the exciter, different amplitudes can be obtained.Single, double, and triple deck configurations allow for the ultimate in-process flexibility.
Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H 1

Product parameter of Vibrating screen machine

ITEM DATA
Processing capacity 120-150t/h
Maximum passing particle size 400mm
Loa(L*W*H) 6500*2000*5000mm
Vibrating screen size (L*W*H) 4000*1500*1500mm
Maximum feed particles 400mm
Number of layers 2
Aperture of upper sieve 20mm
Lower sieve aperture 8mm
Vibration frequency 960f/min
Power 22kw

Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H 2

Areas of application of vibrating screening machine

1,Hard screening tasks in all weather conditions
2,Damp, wet and dry screening
3,Screening of building materials, industrial minerals, salts
4,Screening technology for coal and steel industry
5,Screening of ores
Double Deck Vibrating Screen Gold Mining Machine Processing Capacity 150t/H 3

Our company

Qingdao headdredging heavy industry Co., Ltd is a modern formal machinery processing and sales in one company. Specializing in the production: aquatic weed harvesting,weed cutting machine, cutting boats, Waterweed transport ship, waterweed crushing ship, cutter suction dredger, sand dredger, gold dredger and mining machine.

The company has exported equipment so far: the United States, Suriname, Guyana, Russia, Sierra Leone, Honduras, Indonesia, Saudi Arabia, North Korea, Kyrgyzstan, Cambodia, the Philippines, Myanmar, Ghana, Mali, Sudan, Papua New Guinea, Nigeria, etc. More than 50 Countries and regions, advanced technology, high-quality equipment, efficient processing capacity, and perfect after-sales service have won unanimous praise from foreign customers.
